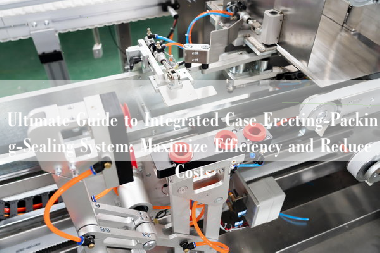

Integrated Case Erecting-Packing-Sealing System Overview and Technical Principles
An Integrated Case Erecting-Packing-Sealing System represents a cornerstone of modern packaging automation. This advanced equipment combines three essential processes—case erecting, packing, and sealing—into a single, streamlined unit. Yanmao Intelligent Equipment (Suzhou) designs these systems to handle diverse carton sizes and materials, delivering seamless operations that minimize manual intervention. Functions include automatically forming flat cartons into ready-to-use containers, inserting products such as bottles or pouches, and applying secure seals. Industries like food processing, pharmaceuticals, and consumer goods benefit from this technology, where high-volume packaging demands efficiency and hygiene. For instance, in food packaging, Yanmao systems ensure rapid handling of perishable items, reducing contamination risks while maintaining compliance with FDA standards. The versatility extends to cartons for electronics or cosmetics, supporting varied production environments across North America and Europe.
Core Working Principles and Mechanical Structure Analysis
The core working principles of Yanmao’s Integrated Case Erecting-Packing-Sealing System revolve around a sequential, automated workflow. Flat cartons feed into the system via a conveyor. A case erector module employs suction cups and mechanical arms to unfold and shape cartons. Next, a case packer module precisely inserts products—such as filled poly bags or rigid items—using robotic arms or guided mechanisms. Finally, a case sealer applies adhesive tape or glue to seal the carton tops and bottoms, ensuring tamper-proof closures. Key mechanical components include servo-driven actuators for precise movement, adjustable guides for carton sizing, and integrated sensors for real-time monitoring. Yanmao’s robust steel frame construction enhances durability, with modular designs allowing easy customization. This structure optimizes space utilization in production lines, enabling smooth transitions between erecting, packing, and sealing without bottlenecks. The absence of complex hand-offs boosts reliability, with error-detection systems minimizing jams and downtime.
Main Technical Parameters and Performance Indicators
Yanmao’s Integrated Case Erecting-Packing-Sealing Systems feature specific technical parameters and performance metrics that define operational excellence. Standard throughput rates range from 10 to 60 cartons per minute, adaptable to carton sizes between 200mm x 200mm and 600mm x 800mm. Power requirements typically involve 480V three-phase electricity, with energy consumption averaging 5-10 kW per hour to support sustainability goals. Material compatibility includes various carton types, such as corrugated cardboard or wax-coated variants, ensuring versatility across applications. Performance indicators highlight Yanmao’s engineering: uptime rates exceed 98% under optimal conditions, driven by precision alignment tolerances within ±0.5mm. Key metrics like seal integrity (tested to withstand 50kg loads) and changeover times (under 5 minutes for size adjustments) underscore efficiency. These systems achieve high repeatability, with error rates below 0.1%, contributing directly to reduced labor costs and increased throughput in end-to-end packaging lines.
Integrated Case Erecting-Packing-Sealing System Operation Guide and Maintenance Specifications
Equipment Installation, Setup, and Commissioning Steps
Proper installation begins with foundation preparation. Ensure a level concrete floor with vibration-dampening properties. Minimum clearance requirements: 1.5 meters front/rear for material flow, 1 meter sides for maintenance access. Electrical connections require 480V three-phase power with dedicated grounding. Pneumatic systems demand clean, dry air at 0.6-0.8 MPa pressure. Setup involves sequential calibration:
1. Carton magazine adjustment for specific case dimensions
2. Suction cup pressure optimization (recommended 0.4-0.6 bar)
3. Product infeed conveyor synchronization
4. Robotic arm trajectory mapping for packing precision
Commissioning requires validation cycles:
– Dry-run testing without products
– Low-speed trials (5-10 cases/minute)
– Full-speed verification with actual packaging materials
Yanmao technicians perform final parameter tuning using HMI interfaces, documenting settings in digital logbooks. Typical commissioning duration: 3-5 business days depending on line complexity.
Standard Operating Procedures and Safety Precautions
Startup Sequence:
1. Power ON control cabinet main switch
2. Activate compressed air supply
3. Load carton blanks into magazine
4. Initiate conveyor systems
5. Select programmed recipe via touchscreen
6. Engage AUTO mode
Shutdown Protocol:
1. Complete in-process cases
2. Switch to MANUAL mode
3. Clear product residues
4. Execute pneumatic system depressurization
5. Cut main power
Critical Safety Measures:
– Lockout/tagout procedures mandatory during maintenance
– Light curtains must remain unobstructed (test weekly)
– Heat-resistant gloves required near sealing stations
– Emergency stop buttons verified at shift start
– Maximum noise exposure: 85 dB(A) – hearing protection essential
– Never bypass machine guarding or safety interlocks
Operators require certification after 40 hours of Yanmao-approved training. Performance validation includes handling 500+ cases without intervention.
Routine Maintenance, Troubleshooting, and Maintenance Schedule
Daily Tasks:
– Vacuum generator filter inspection
– Guide rail lubrication (ISO VG 32 oil)
– Sensor lens cleaning with alcohol wipes
– Seal tape/adhesive application check
Weekly Procedures:
– Belt tension verification (deflection < 5mm at 5N force)
– Pneumatic cylinder rod inspection for scoring
– Suction cup integrity testing
– Electrical terminal tightness audit
Monthly Maintenance:
– Servo motor encoder calibration
– Gearbox oil replacement (first 500 hours, then annually)
– Structural bolt torque confirmation
Common Fault Resolution:
| Symptom | Probable Cause | Action |
|———|—————-|——–|
| Case misfeed | Worn suction cups | Replace cups (PN# YM-SC-04) |
| Improper sealing | Tape roll depletion | Reload & recalibrate tension arm |
| Product misalignment | Conveyor tracking error | Adjust guide rails per HMI prompts |
| System halt | Photoelectric sensor blockage | Clean emitter/receiver surfaces |
Implement Yanmao’s Predictive Maintenance Package for automated component lifecycle tracking. Maintenance logs must record: work date, replaced parts, technician ID, and post-maintenance throughput validation. Schedule comprehensive system audits biannually by certified Yanmao engineers.
Integrated Case Erecting-Packing-Sealing System Price Analysis and Selection Strategy
Key Price Determinants: Brand, Model Specifications, and Functional Capabilities
System pricing reflects engineering complexity and performance specifications. Throughput capacity creates significant cost differentiation – units processing 15 cases/minute typically range 30-40% lower than 25-case/minute models. Material compatibility expands investment requirements; systems handling corrugated cartons only maintain base pricing, while dual-capability units accommodating both cardboard and plastic totes command 15-20% premiums. Automation depth impacts costs:
– Basic mechanical integration
– Vision-guided robotic positioning (+$18,000-$25,000)
– IoT-enabled predictive maintenance modules (+$12,000-$15,000)
Brand positioning influences 25-35% of MSRP. Established manufacturers incorporate R&D amortization and global service infrastructure into pricing. OEM components contribute substantially – European servo drives add 8-12% versus Asian alternatives. Customization drives variability; bespoke tooling for non-standard container sizes incurs $7,500-$15,000 design fees. Energy efficiency certifications (ISO 50001 compliant systems) typically increase initial investment by 5-8% but yield 3-year operational savings.
Market-Leading System Performance and Investment Benchmarks
Performance comparisons reveal operational economics across tiers:
| Specification | Entry Tier | Mid-Range | Premium (Yanmao ICS-300) |
|---|---|---|---|
| Cases/Hour | 600-800 | 900-1,200 | 1,400-1,600 |
| Case Size Range | 12-24″ L | 10-30″ L | 8-36″ L |
| Changeover Time | 25-40 minutes | 15-25 minutes | <8 minutes |
| Uptime % | 82-86% | 88-92% | 95%+ |
| Price Range | $85,000-$110,000 | $135,000-$165,000 | $185,000-$225,000 |
| Labor Reduction | 2.5 FTE | 3.5 FTE | 4.5 FTE |
Yanmao’s ICS-300 series demonstrates 18% higher energy efficiency than industry averages. Third-party validation confirms 23-month ROI for food processors running dual shifts. Pharmaceutical-grade variants featuring washdown construction and FDA-compliant materials command 22-28% price premiums over standard industrial models.
Strategic Procurement Framework and Value Optimization
Procurement alignment with operational requirements prevents overspending. Conduct material analysis: operations handling uniform carton sizes achieve 97% functionality with mechanical systems, eliminating vision system expenses. Evaluate production volatility; facilities with frequent SKU changes benefit from Yanmao’s Quick-Change Tooling system despite 14% higher initial cost. Consider these optimization pathways:
– Modular Expansion: Start with core erecting-packing functions ($140k-$160k), add automated sealing later (+$28k)
– Refurbished Premium Systems: Certified remanufactured units with warranty offer 35-40% savings
– Lease-to-Own Programs: 36-month terms preserve capital with upgrade options
Prioritize manufacturers providing lifecycle cost documentation. Yanmao’s Total Cost of Ownership Calculator accounts for energy consumption, maintenance parts, and labor savings over 7-year horizons. Require performance guarantees in service contracts – industry leaders offer 98% uptime commitments with penalty clauses. For hybrid operations handling both cartons and drums, integrated Yanmao solutions deliver 19% better efficiency versus separate systems. Global operations should verify regional service coverage; Yanmao maintains 48-hour response guarantees across North America and EU territories.
