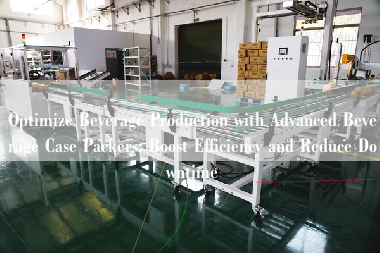

1. Beverage Case Packers: Core Functions & Evolution
Beverage Case Packers represent a cornerstone technology in modern beverage manufacturing. These automated systems perform the critical task of transferring finished bottles or cans from production conveyors into shipping cases or trays. The core function transforms loose containers into secure, transport-ready units. This automation delivers substantial industrial value: significant labor reduction, minimized product damage, enhanced line speed consistency, and improved facility safety by removing personnel from repetitive, potentially hazardous tasks. Operational efficiency gains directly impact profitability.
The role of Beverage Case Packers within factory operations has evolved dramatically. Early systems focused primarily on labor replacement for simple, high-volume formats. Contemporary units are integral components within complex, interconnected packaging lines. They now handle vastly diverse container types (glass, PET, cans), package configurations (multi-packs, mixed flavors), and case styles with precision. Integration with upstream filling/capping and downstream palletizing systems is standard. This evolution positions the case packer not merely as a standalone machine, but as the pivotal link ensuring seamless throughput from production to warehouse.
Current mainstream technology reflects this demand for flexibility and intelligence. Several distinct technical approaches dominate:
Traditional Case Packers: Utilizing mechanical arms, pushers, or elevators/drop systems, these remain robust solutions for high-speed, uniform container packing into standard cases.
Wrap-around Packers: Employing film or paper to form a package around a group of containers, offering material savings and adaptability to various counts.
* Robotic Case Packers: Leveraging articulated robots with advanced end-of-arm tooling (EOAT), providing unparalleled flexibility for mixed SKUs, complex patterns, and quick changeovers.
Key trends are shaping Beverage Case Packer development:
Enhanced Flexibility: Machines must rapidly adapt to changing bottle shapes, sizes, and case types without prolonged downtime.
Increased Intelligence: Integration of machine vision for container orientation verification, quality checks, and precise robotic guidance is becoming standard.
Higher Speeds & Uptime: Continuous engineering improvements push throughput limits while demanding greater reliability and easier maintenance access.
Sustainability Focus: Designs emphasize energy efficiency, reduced film/board usage (especially with wrap-around), and compatibility with recycled materials.
* Data Connectivity: Seamless integration with plant-wide SCADA/MES systems for real-time monitoring, performance tracking, and predictive maintenance data is essential.
Yanmao Intelligent Equipment (Suzhou) designs its Beverage Case Packers to embody these trends, offering solutions from high-speed mechanical systems to advanced robotic platforms, all focused on maximizing efficiency and adaptability within the modern beverage plant.
2. Automated Beverage Case Packing Systems: Types & Operating Principles
2.1 Case Packers: Structural Design & Application Scope
Case Packers operate through coordinated mechanical systems for high-volume operations. Structural components include rigid frame construction, precision timing screws for container spacing, flighted conveyor lanes for grouping, and mechanical plungers or gripper heads for container transfer. These systems excel in environments requiring consistent throughput exceeding 1,200 containers per minute. Application suitability centers on standardized container formats – aluminum cans, uniform PET bottles, and glass containers with stable geometries. Beverage producers favor Case Packers for dedicated production lines with minimal SKU changes, particularly in carbonated soft drinks and bottled water segments. The mechanical nature ensures operational reliability under continuous high-speed conditions.
2.2 Wrap-around Packers: Technical Attributes & Container Compatibility
Wrap-around Packers utilize film or paper substrates to form protective bundles around container groups. Key technical features include rotary arm mechanisms, pre-folded film magazines, and thermal sealing stations. This approach demonstrates exceptional adaptability to variable container dimensions – accommodating height differences up to 30% within the same production run. Beverage manufacturers leverage this technology for promotional multi-packs, tapered glass bottles, and lightweight aluminum cans where traditional rigid cases prove inefficient. Material efficiency becomes a decisive advantage, with wrap-around systems reducing packaging material consumption by 15-40% compared to conventional cases. The elimination of case storage and erection subsystems simplifies line layout.
2.3 Robotic Case Packers: Flexibility & Intelligent Operation
Robotic Case Packers deploy articulated arms with adaptive end-of-arm-tooling (EOAT) for container handling. Advanced models integrate 3D vision systems for real-time container recognition and trajectory adjustment. This architecture supports instantaneous changeovers between disparate container formats – transitioning from aluminum cans to glass bottles requires only digital recipe selection. Beverage facilities implementing mixed-SKU production, limited edition runs, or complex package configurations achieve operational flexibility previously unattainable. The systems self-optimize grip pressure and placement velocity through force-torque sensors, preventing container damage while maintaining speeds up to 60 cases per minute. Data logs track performance metrics for continuous improvement cycles.
2.4 Core Operational Sequence: From Infeed to Palletization
Automated beverage packing follows a synchronized five-stage sequence:
– Container Infeed & Orientation: Accumulation conveyors regulate container flow while optical sensors verify proper orientation
– Lane Distribution & Grouping: Diverting gates direct containers into predetermined lane configurations matching case patterns
– Case Presentation: Integrated case erectors position pre-glued cases at precise loading coordinates
– Container Placement: Mechanical arms, pusher assemblies, or robotic EOAT transfer grouped containers into cases
– Sealing & Transfer: Top flap sealing mechanisms activate before conveyors transport filled cases toward palletizing stations
This continuous motion process maintains synchronization through programmable logic controllers monitoring conveyor encoders and proximity sensors. Buffer zones between stages prevent upstream disruptions from propagating through the system. Modern units incorporate predictive algorithms that adjust timing based on container jamming probabilities detected at inspection points.
3. Beverage Case Packer Performance Assurance: Maintenance & Troubleshooting Systems
3.1 Daily Maintenance Protocols: Cleaning, Lubrication & Critical Component Inspection
Routine maintenance sustains peak beverage case packer performance. Daily cleaning procedures remove sugar residues and liquid spills from conveyor lanes using non-corrosive agents, preventing microbial growth in food-grade environments. Lubrication cycles follow manufacturer specifications: linear bearings receive food-grade grease weekly while pneumatic cylinders require monthly lubrication. Critical component checks include inspecting gripper pad integrity on robotic units, verifying vacuum pressure on suction-based systems, and testing alignment sensors. Mechanical drive components undergo vibration analysis; deviations beyond 0.2 in/sec indicate impending bearing failure. Maintenance logs document chain tension measurements, electrical contact checks, and wear patterns on flight bars. These procedures align with ISO 9001-certified beverage packing machine maintenance standards.
3.2 Failure Diagnosis & Resolution Strategies
3.2.1 Container/Case Jamming Analysis & Resolution
Container jams originate from three primary sources:
– Misaligned guides causing PET bottles to tip in accumulation lanes
– Worn starwheel segments creating timing discrepancies
– Overfilled cases exceeding weight sensors’ tolerance thresholds
Immediate resolution involves emergency stop activation followed by reverse jogging of affected conveyors. Permanent corrections require gap adjustment between timing screws and lane dividers, typically maintaining 1.5x container diameter spacing. Case jamming solutions include installing anti-static brushes on corrugated paths and upgrading to servo-controlled flap folders.
3.2.2 Grasping/Positioning Inaccuracies
Precision errors manifest as dropped containers or misaligned cases. Diagnostic steps:
1. Validate EOAT calibration using laser alignment tools
2. Inspect vision system lenses for condensation or debris
3. Measure pneumatic pressure consistency at end-effectors
4. Check encoder feedback on robotic axis joints
Mechanical wear in rotary unions causes vacuum leaks during grasping, while misconfigured photoelectric sensors create false positioning signals. Resolution involves replacing worn suction cups and recalibrating object detection sensors using certified test patterns.
3.2.3 Control System Alarms & Recovery
PLC alarm codes categorize failures:
– E-Stop sequences indicate safety curtain breaches
– Drive faults correspond to motor overload conditions
– Communication errors reflect network packet loss
Recovery protocols require systematic validation of I/O points using diagnostic software. Persistent HMI alarms necessitate parameter verification in servo drive configurations. Backup restoration procedures recover production settings within 90 seconds after power disruptions.
3.3 Preventive Maintenance Planning & Spare Parts Optimization
Comprehensive preventive maintenance schedules incorporate:
– Vibration analysis quarterly on gearboxes and motors
– Thermographic inspections biannually on electrical panels
– Full calibration annually on metrology systems
Spare parts management employs criticality scoring:
| Criticality | Components | Stock Strategy |
|————-|————|—————|
| Tier 1 | Servo drives, PLC modules | On-site redundancy |
| Tier 2 | Conveyor belts, sensors | 48-hour availability |
| Tier 3 | Fasteners, seals | Vendor-managed inventory |
Digital twin simulations predict component failure windows, optimizing maintenance intervals. RFID-tagged parts automate replenishment when scanners detect warehouse levels falling below thresholds. This approach reduces unplanned downtime by 60% while cutting spare parts inventory costs by 35%.
4. Beverage Case Packer Selection Strategy & Technology Outlook
4.1 Critical Selection Criteria: Matching Technology to Production Needs
Selecting beverage case packing equipment demands rigorous evaluation against operational parameters. Production capacity requirements dictate machine specifications; high-speed rotary case packers support outputs exceeding 150 cases per minute, while robotic systems offer flexibility for 20-80 CPM mid-range volumes. Container compatibility analysis verifies handling capabilities for diverse formats: PET bottles, aluminum cans, glass containers, and novel lightweight designs. Physical footprint constraints necessitate precise layout planning; integrated case erecting-packing-sealing systems reduce floor space by 30% versus modular configurations. Automation level decisions balance labor reduction goals against capital expenditure, with semi-automatic systems serving low-volume facilities and fully automated lines enabling lights-out production. Total Cost of Ownership calculations extend beyond purchase price, encompassing energy consumption metrics (kWh/case), maintenance expenditure projections, and projected operational lifespan. Food-grade stainless steel construction remains mandatory for beverage environments, while IP65-rated electrical components ensure reliability in high-moisture conditions.
4.2 Integration Challenges & Implementation Excellence
Deploying automated beverage packing machines presents multifaceted integration complexities. Spatial constraints often require customized conveyor routing solutions, particularly in brownfield facilities with existing infrastructure. Control system harmonization proves critical; Yanmao systems feature standardized OPC-UA interfaces ensuring seamless communication with upstream fillers and downstream palletizers. Mechanical synchronization challenges emerge during timing adjustments between unscramblers and case packer infeeds, resolved through encoder-controlled servo indexing. Changeover reduction strategies employ quick-release mechanisms and recipe management software, cutting format transitions from hours to minutes. Successful implementations follow a phased approach:
– Pre-installation audits mapping utility requirements and structural load capacities
– Virtual commissioning using digital twins to validate line balancing
– Staggered commissioning beginning with manual mode functionality
– Performance validation through 72-hour continuous run-off tests
4.3 Emerging Technological Capabilities
Beverage packaging automation advances toward unprecedented flexibility and intelligence. AI-powered vision systems now identify container damage and orientation errors at 200 items per second, triggering automatic rejection before case loading. Self-adjusting grippers compensate for container dimensional variations up to ±3mm without manual intervention. Sustainable engineering innovations include:
– Regenerative drive systems recovering 15-20% of motion energy
– Friction-reducing linear guides cutting power consumption by 12%
– Lightweight aerospace-grade aluminum frames reducing material usage
Adaptive control algorithms analyze production data in real-time, automatically optimizing machine speeds based on upstream buffer levels. These developments enable single-platform systems to handle over 30 container formats with zero mechanical change parts.
4.4 Industrial IoT & Predictive Maintenance Evolution
Connectivity transforms beverage case packer maintenance paradigms. Yanmao’s IIoT platform integrates vibration sensors, thermal imagers, and power quality monitors into a unified analytics dashboard. Machine learning algorithms process this telemetry to detect anomalies:
– Motor current signatures predicting bearing failure 400 operating hours pre-fault
– Pneumatic pressure decay curves identifying valve deterioration
– Vision system focus metrics indicating lens contamination
Cloud-based digital twins simulate component stress under actual production conditions, recommending maintenance actions before failures occur. Remote diagnostics enable Yanmao engineers to perform 73% of troubleshooting activities without site visits. The transition from scheduled to condition-based maintenance reduces service costs by 45% while achieving 98.6% operational availability. Future developments include blockchain-secured quality documentation automatically generated with each production run and AR-assisted maintenance overlaying repair instructions directly onto equipment via smart glasses.
