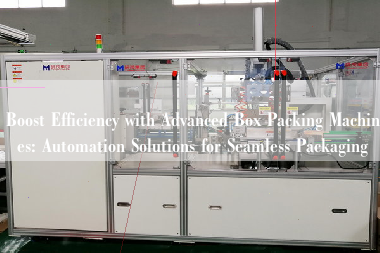

Boost Efficiency with Advanced Box Packing Machines: Automation Solutions for Seamless Packaging

H2: Carton Automation Solutions: Precision Case Packers as Manufacturing Catalysts

Carton packaging remains fundamental across industries, yet manual case packing introduces bottlenecks impacting throughput and profitability. Yanmao Intelligent Equipment (Suzhou) addresses these challenges head-on with engineered Case Packer solutions, transforming carton handling into a strategic efficiency driver.

H3: Automated Case Packing: The Engine of Packaging Line Transformation

Manual case packing presents significant limitations. Labor-intensive processes create speed mismatches with upstream filling equipment, limiting overall line output. Consistency suffers, potentially leading to product damage during manual placement or incomplete carton fills. Yanmao Case Packers eliminate these constraints. By automating product insertion into cartons, these systems synchronize seamlessly with upstream fillers and downstream sealers. The result is a significant throughput increase, often exceeding manual rates by 200-400%. Human error related to product count, placement, or orientation is virtually eliminated, ensuring every carton meets precise specifications. This automation directly translates to reduced labor dependency and associated costs.

H3: Case Packer Evolution: From Semi-Automatic to Advanced Robotic Systems

Yanmao offers a spectrum of Case Packer technologies tailored to diverse production volumes and product characteristics:

• Semi-Automatic Case Packers: Ideal for lower-volume lines or complex products requiring operator oversight. Operators present products to the machine, which automates the precise placement into pre-erected cartons. This offers a cost-effective entry point into automation.
• Continuous Motion Case Packers: Engineered for high-speed production of standard products like bottles, cans, or pouches. Products are continuously fed and accurately dropped into cartons moving synchronously on a conveyor belt. Suited for speeds demanding 20+ cartons per minute (CPM).
• Intermittent Motion Case Packers: Provide high precision for delicate, irregularly shaped, or easily damaged products. The carton and infeed stop momentarily, allowing gentle, controlled product placement before resuming motion. Balances speed with careful handling.
• Robotic Case Packers: Deliver ultimate flexibility. Equipped with industrial robots featuring advanced end-of-arm tooling (EOAT), these systems handle complex patterns, mixed SKUs, and highly fragile items within a single carton. Ideal for high-mix, low-volume (HMLV) environments requiring frequent changeovers. Yanmao’s robotic solutions integrate seamlessly within larger systems.

H3: Core Performance Metrics: Evaluating Case Packer Capability

Selecting the optimal Case Packer demands careful assessment of three critical performance dimensions:

1. Speed (Throughput): Measured in cartons per hour (CPH) or minute (CPM). Yanmao systems range from solutions handling 10 CPM for delicate goods to high-speed models exceeding 40 CPM for rigid containers. Matching machine speed to upstream/downstream equipment prevents bottlenecks.
2. Accuracy (Precision): Essential for product safety and presentation. Precision is measured in millimeters for placement tolerance (±0.5mm is common for high-end systems) and absolute accuracy in product count. Vision systems often guarantee 100% count verification.
3. Compatibility (Flexibility): Assesses the machine’s ability to handle diverse product types, sizes, and carton formats. Key factors include:
   • Product Handling: Capability with bottles, cans, pouches, trays, bags, or irregular shapes.
   • Carton Range: Minimum and maximum carton dimensions (LxWxH) the machine can process. Quick-change tooling minimizes downtime during size transitions.
   • Pattern Complexity: Ability to create single or multi-layer patterns, mixed SKU loads, or intricate arrangements.
   • Changeover Time: Duration required to switch between different products or carton sizes. Yanmao designs for rapid, tool-less changeovers where possible.

Yanmao Case Packers are engineered to excel across these metrics, providing manufacturers with robust, reliable automation that forms the core of a high-performance carton packaging line. Their integration with Yanmao Case Erectors and Case Sealers creates a seamless, efficient flow from flat carton to sealed, pallet-ready unit.

H2: Precision Selection Guide: Matching Case Packers to Your Production Needs

Selecting the optimal Case Packer demands a strategic approach. Yanmao Intelligent Equipment (Suzhou) advocates a systematic methodology ensuring the chosen system aligns perfectly with operational requirements and constraints. This guide outlines the critical factors for successful Case Packer integration.

H3: The Five-Step Selection Framework: Aligning Machine Capability with Operational Reality

A structured assessment prevents costly mismatches between Case Packer capabilities and production demands. Yanmao recommends evaluating these five core parameters:

• Production Volume Analysis: Quantify current and projected carton output requirements (cartons per hour/minute). This determines the necessary Case Packer speed category (semi-automatic, continuous motion, robotic). Consider peak seasons and future growth to avoid under-specification.
• Carton Specification Audit: Document all carton types used or planned. Include dimensions (minimum/maximum length, width, height), flute type, material weight, and flap configuration. Case Packer compatibility with this range is non-negotiable.
• Investment Budget Parameters: Define the capital expenditure (CAPEX) envelope. This framework balances desired features (like robotic flexibility) with financial realities, guiding the choice between semi-automatic, intermittent, continuous, or robotic platforms. Consider total cost of ownership (TCO), including energy use and maintenance.
• Facility Space Constraints: Measure the available footprint for the Case Packer and associated conveyors. Robotic systems may offer compact layouts; continuous motion machines require linear space. Ensure adequate clearance for operation and maintenance access.
• Product & Process Requirements: Characterize the products being packed (size, weight, fragility, stability) and any unique handling needs (orientation, pattern complexity, potential for mixed SKUs). This dictates gripper technology, infeed design, and placement precision levels.

This diagnostic process creates a clear specification profile for vendor evaluation.

H3: Integration Essentials: Ensuring Harmony with Existing Packaging Lines

A Case Packer operates within an ecosystem. Seamless integration with upstream equipment (fillers, cappers, labelers) and downstream systems (case sealers, palletizers) is critical for maximizing ROI. Key integration considerations:

• Conveyance Synchronization: Match conveyor widths, heights, and speeds between the Case Packer infeed/outfeed and adjacent machinery. Yanmao systems feature adjustable legs and conveyor interfaces for precise alignment.
• Control System Compatibility: Verify communication protocols (Ethernet/IP, Profinet, Modbus TCP) between the Case Packer PLC and the line’s master control system (MES/SCADA). Yanmao equipment supports industry-standard protocols for real-time monitoring and control.
• Upstream/Downstream Buffering: Implement short accumulation buffers before the Case Packer infeed and after its discharge to manage minor flow variations, preventing line stoppages.
• Safety System Interlocking: Integrate safety circuits (light curtains, emergency stops) so the Case Packer halts appropriately if upstream/downstream equipment faults occur, protecting personnel and product.

Yanmao engineers collaborate closely with clients to map these interfaces, designing custom transition sections and control logic for plug-and-play operation.

H3: Addressing Complexity: Solutions for Challenging Packing Scenarios

Beyond standard cartons and products, manufacturers face unique packing challenges. Yanmao Case Packers demonstrate versatility in demanding applications:

• Irregularly Shaped Items: Products like automotive parts, large appliances, or grouped items require custom engineered grippers and potentially robotic placement. Yanmao robotic Case Packers with adaptive EOAT handle complex geometries securely.
• Fragile Product Handling: Delicate items (glassware, electronics, baked goods) need gentle placement control. Intermittent motion Case Packers or robots with force sensing ensure precise, low-impact insertion. Custom tooling with cushioning minimizes breakage.
• Multi-SKU/Multi-Pattern Cartons: E-commerce and retail often demand mixed product loads or complex layer patterns within a single carton. Yanmao robotic systems, programmed via intuitive interfaces, manage intricate patterns and product variations efficiently. Vision guidance can verify correct item placement.
• Variable Carton Sizes (FFS – Form-Fill-Seal): Integrated systems combining case erecting, packing, and sealing handle frequent carton size changes automatically, minimizing downtime for format adjustments.

Real-world examples include a pharmaceutical client packing delicate vials in partitioned cartons using intermittent motion with soft grippers, and an e-commerce fulfillment center utilizing Yanmao robotic Case Packers for mixed SKU orders with zero error rates.

By methodically applying the five-step framework, prioritizing seamless integration, and leveraging Yanmao’s expertise in complex scenarios, manufacturers secure Case Packer solutions delivering sustained operational advantage and rapid return on investment.

H2: Efficient Operation and Maintenance: Sustained Packaging Line Performance

Maximizing Case Packer availability demands a proactive maintenance philosophy. Yanmao Intelligent Equipment designs systems with serviceability at the core, supporting North American and European manufacturers in achieving uninterrupted production cycles. Structured maintenance protocols transform equipment from capital investments into reliable production assets.

H3: Preventive Maintenance Schedule: Proactive Care for Peak Performance

Preventive maintenance sustains Case Packer efficiency and extends service life. Yanmao recommends this maintenance cadence:

• Daily Procedures: Verify pneumatic system pressure (85-100 PSI standard), inspect gripper jaw alignment, clear debris from product infeed sensors, examine case conveyor chain tension, confirm sealing tape adhesive performance. Operators document unusual vibrations or sounds.
• Weekly Protocols: Lubricate linear guides and bearings per manufacturer specifications, inspect electrical connections for integrity, test emergency stop functionality, clean optical sensors with alcohol wipes, calibrate case positioning sensors. Maintenance logs track component wear trends.
• Monthly Maintenance: Replace worn belt drives or chain links, validate robotic axis calibration (for robotic Case Packers), perform motor current draw tests, inspect structural frame bolts for proper torque, clean internal ventilation filters. Thermal imaging identifies potential electrical hotspots.

Yanmao’s remote monitoring platform automatically tracks maintenance compliance, sending automated reminders for scheduled service intervals based on actual machine runtime.

H3: Fault Code Quick Reference Guide: Accelerating Issue Resolution

Immediate response to Case Packer alarms minimizes downtime. Yanmao systems feature intuitive HMI interfaces with contextual error guidance. Top 10 Case Packer alarms and corrective actions:

1. E01: Infeed Jam → Clear product blockage at primary infeed conveyor; verify sensor alignment
2. E07: Vacuum Loss → Check suction cup integrity; inspect vacuum generator lines; verify pressure switch
3. E12: Case Magazine Empty → Reload case blanks; confirm magazine sensor operation
4. E19: Sealing Tape Break → Reload tape cartridge; adjust tape feed tension
5. E22: Gripper Timeout → Inspect product detection sensors; verify gripper open/close signals
6. E34: Conveyor Tracking Fault → Realign case conveyor guides; check drive motor encoder
7. E41: Safety Circuit Interrupt → Reset light curtain; clear obstruction in protected zone
8. E55: Robotic Path Error (robotic models) → Recalibrate robot home position; check for mechanical binding
9. E63: Communication Loss → Verify Ethernet cable connections; restart PLC communication module
10. E77: Overcurrent Protection → Allow motor cooling; inspect for mechanical resistance in drives

Yanmao’s augmented reality support app provides technicians with 3D visualizations of fault locations and repair procedures.

H3: Spare Parts Management Strategy: Lifecycle Planning for Critical Components

Strategic spare parts inventory prevents extended production halts. Yanmao categorizes Case Packer components by failure probability and impact:

• Critical Wear Components: Suction cups (replace every 3-6 months), sealing tape blades (6-month cycle), conveyor belts (12-18 month lifespan). Maintain minimum 2x usage quantity in inventory.
• High-Impact Electronics: PLC output modules, servo motor drives, HMI touch panels. Track mean time between failure (MTBF) data; replace proactively at 80% of rated lifespan.
• Structural Elements: Guide rails, bearing assemblies. Monitor via vibration analysis; replace when wear exceeds 0.5mm tolerance.
• Consumables Kits: Yanmao offers pre-configured maintenance kits containing filters, seals, and fasteners for scheduled service events.

The Yanmao SmartSpares program uses IoT sensor data to predict component failures, automatically shipping critical parts 30 days before projected replacement dates. Digital twin technology simulates component stress, optimizing replacement schedules based on actual production conditions.

This comprehensive approach to operation and maintenance transforms Case Packers from potential bottlenecks into productivity multipliers, delivering consistent ROI through maximized uptime and controlled operating costs.

H2: The Future Boxing Revolution: Smart Factory Advancements

Packaging automation enters its next evolutionary phase as Industry 4.0 technologies transform Case Packer functionality. Yanmao Intelligent Equipment pioneers intelligent systems where data-driven decisions replace manual interventions, creating self-optimizing packaging environments for North American and European manufacturers. These advancements deliver unprecedented quality control while aligning with global sustainability imperatives.

H3: Industry 4.0 Integration: MES Connectivity in Action

Yanmao Case Packers evolve into data hubs through Manufacturing Execution System (MES) integration. Embedded IoT sensors capture real-time performance metrics – cycle times, jam frequency, energy consumption – feeding into centralized dashboards. This bidirectional data flow enables:

• Predictive Performance Adjustments: Algorithms analyze historical throughput patterns to preemptively adjust robotic arm trajectories and conveyor speeds before bottlenecks occur
• Automated OEE Reporting: Equipment Effectiveness calculations auto-generate during changeovers, identifying efficiency gaps without manual data entry
• Remote Parameter Optimization: Production managers modify case dimension presets or product handling parameters via cloud-connected HMIs during off-shift hours

Food processing plants using Yanmao’s integrated systems report 18% throughput increases after implementing MES-driven changeover sequencing. Pharmaceutical manufacturers leverage audit trails automatically documenting case sealing temperatures and operator access logs for compliance reporting.

H3: AI-Powered Quality Control: Missing Item Detection Breakthroughs

Vision systems transcend traditional barcode verification with deep learning capabilities. Yanmao’s proprietary AI inspection modules mounted on Case Packers perform volumetric analysis of partially sealed containers, detecting missing components through millimeter-wave scanning and 3D reconstruction. Key innovations include:

• Multi-Spectral Imaging: Combined infrared and visible light scans identify transparent items like glass vials against complex backgrounds
• Anomaly Detection Algorithms: Neural networks trained on 500,000+ product configurations flag deviations from standard packing patterns
• Self-Correcting Workflows: Automated rejection arms remove non-compliant cases while triggering immediate repacking sequences

Electronics manufacturers using these systems reduced shipping errors by 99.7% while eliminating manual inspection stations. The technology handles challenging scenarios like nested components in cosmetic kits or mixed SKU configurations in subscription boxes.

H3: Sustainable Packaging Operations: Consumable Reduction Strategies

Intelligent Case Packers drive environmental compliance through resource optimization technologies. Yanmao integrates sustainability metrics directly into machine controls, addressing two critical areas:

• Material Efficiency Systems: Computer-vision guided case erectors minimize cardboard waste by selecting optimal blank sizes from mixed magazines, reducing material usage by 11-15%. Adaptive glue applicators adjust patterns based on carton porosity readings.
• Energy Recovery Architecture: Regenerative braking systems in robotic arms convert deceleration energy into capacitor-stored electricity for peak demand periods. Variable frequency drives match motor output to actual conveyor loading.
• Lifecycle Analytics: Digital twins simulate packaging process modifications, predicting consumable savings before physical implementation. Cloud-based dashboards track carbon footprint reductions per thousand cases shipped.

Consumer goods companies achieve LEED certification points through Yanmao’s resource monitoring systems, which document reduced water consumption in cleaning cycles and quantify tape usage reductions from precision dispensers. The technology supports circular economy initiatives by enabling seamless transition to recycled-content corrugate and plant-based adhesives.

These advancements position Yanmao Case Packers as central nervous systems for tomorrow’s smart factories – where productivity, quality, and sustainability converge through interconnected intelligence. Operational data becomes strategic assets rather than byproducts, fundamentally redefining packaging line value propositions.
